Ultrasound Therapy 1mhz
Model: RSMS-08
Ultrasonic frequency: 1mHz ±5%
Output mode: Continuous and pulsed
Power density: up to 3 watts cm2 +5% adj.
Timer: Digital with alarm (99min) ±5sec.
Pulse setting: Knob
Pulse Ratio: 1:1, 1:4, 1:7, 2:00
Ultrasonic output: Max 3 watts cm2
Max. Output in Cont. Mode: 2Watts/cm2 Max.
Output in Pulse Mode: 3Watts/cm2
Download Specification
Ultrasound Therapy (UST)

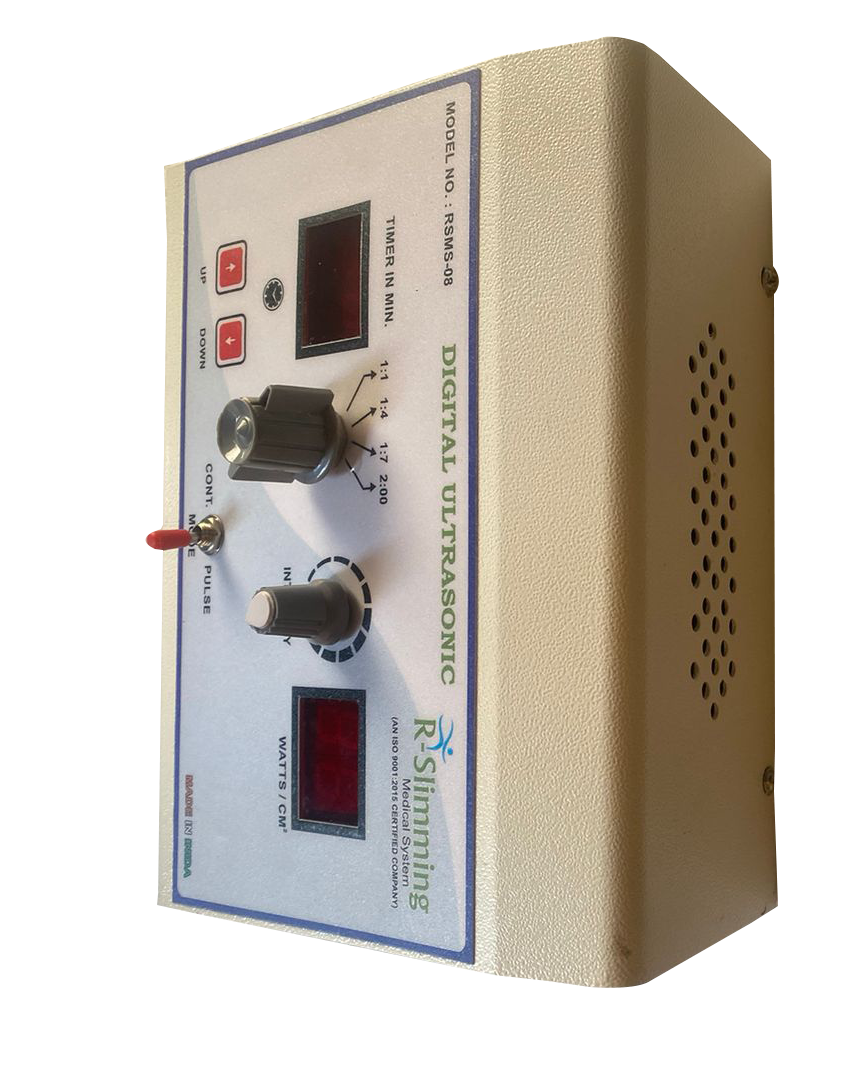

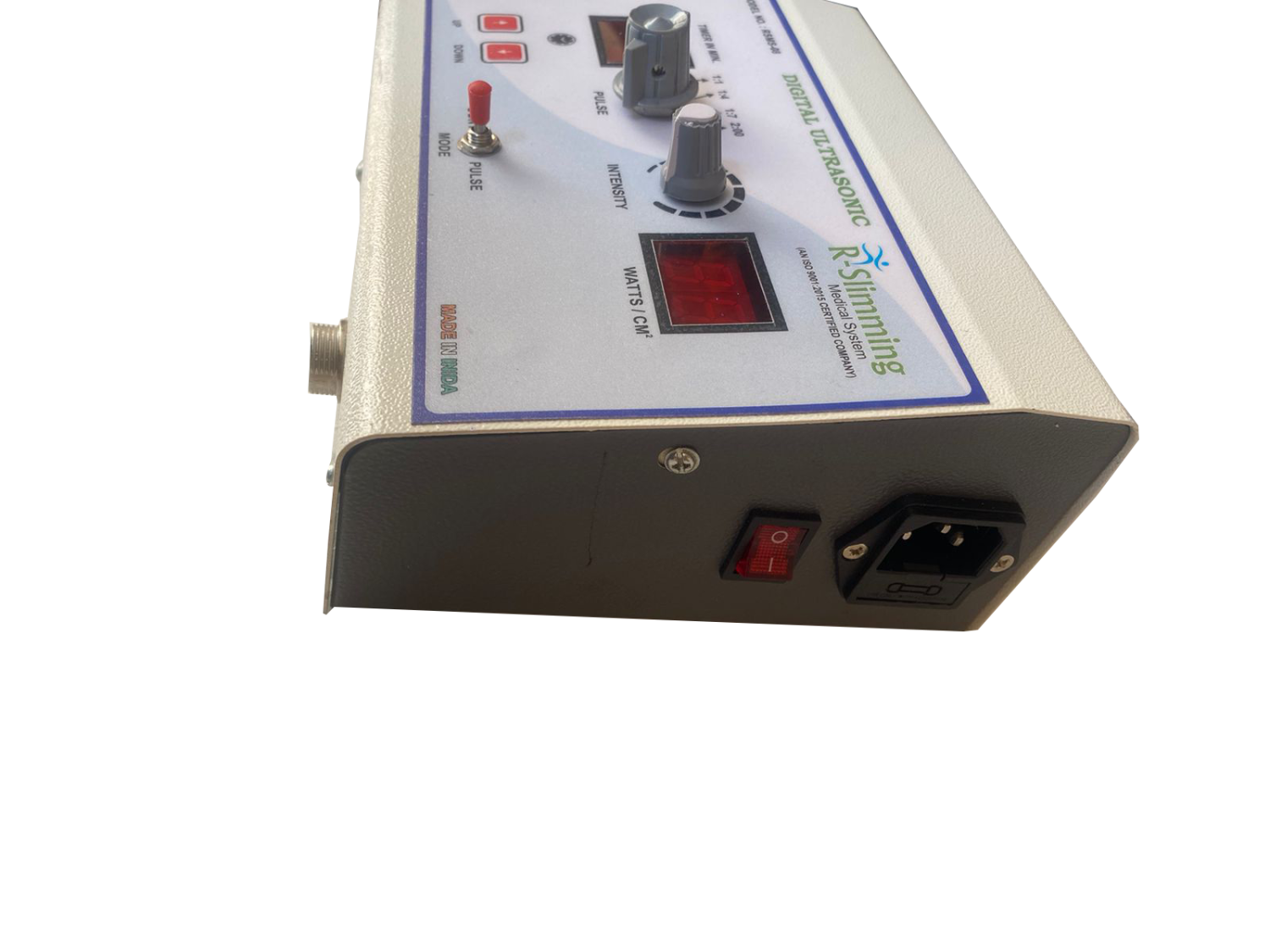

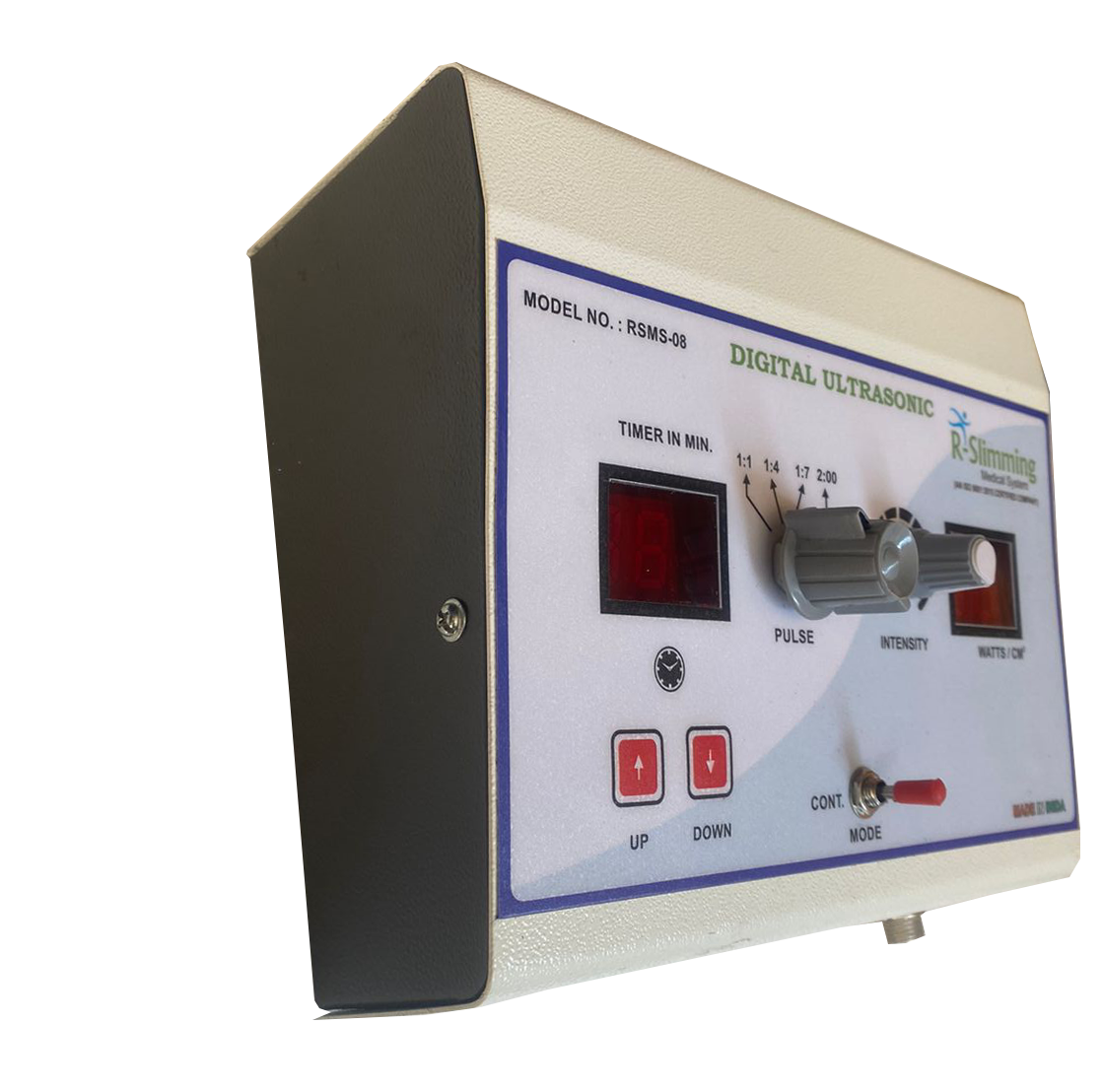

Solid-State Ultra Sound Therapy Unit is most advance, Portable, lightweight, based on solid-state circuitry. It has continuous and pulse both mode, digital timer, digital out-put meter & crystal safety circuit comes up with one transducer, mains cable, Jelly, spare fuse.
Applications:
Ultrasonic waves are useful for treatment of Inflammation of Elbow Joint (Tennis Elbow), Plantar Fascitis (Heel Pain), Shortening of Muscle or Ligament, Inflammation of tendons (Suprasspinatus tendni- tis), Ligament Sprain (Lateral Ligament Sprain of Ankle), Unhealed Scars etc.
General Features:
Model: RSMS-08
Ultrasonic frequency: 1mHz ±5%
Output mode: Continuous and pulsed
Power density: up to 3 watts cm2 +5% adj.
Timer: Digital with alarm (99min) ±5sec.
Pulse setting: Knob
Pulse Ratio: 1:1, 1:4, 1:7, 2:00
Ultrasonic output: Max 3 watts cm2
Max. Output in Cont. Mode: 2Watts/cm2
Max. Output in Pulse Mode: 3Watts/cm2
Technical Features:
Size: Width: 7.5" , Length: 5", Height: 2.5"
Dimension: (L*H*D) 127mm x 63mm x 190mm
Probe Size: 34mm
Weight: 1 kg (Approx)
Power input: 210-230V 50Hz AC + 20%
Absorption watts: 65 watts
Fuses: 1 Amp
Moisture: 10% to 80%
Room Temperature: 10° to 40° C
Standard Accessories:

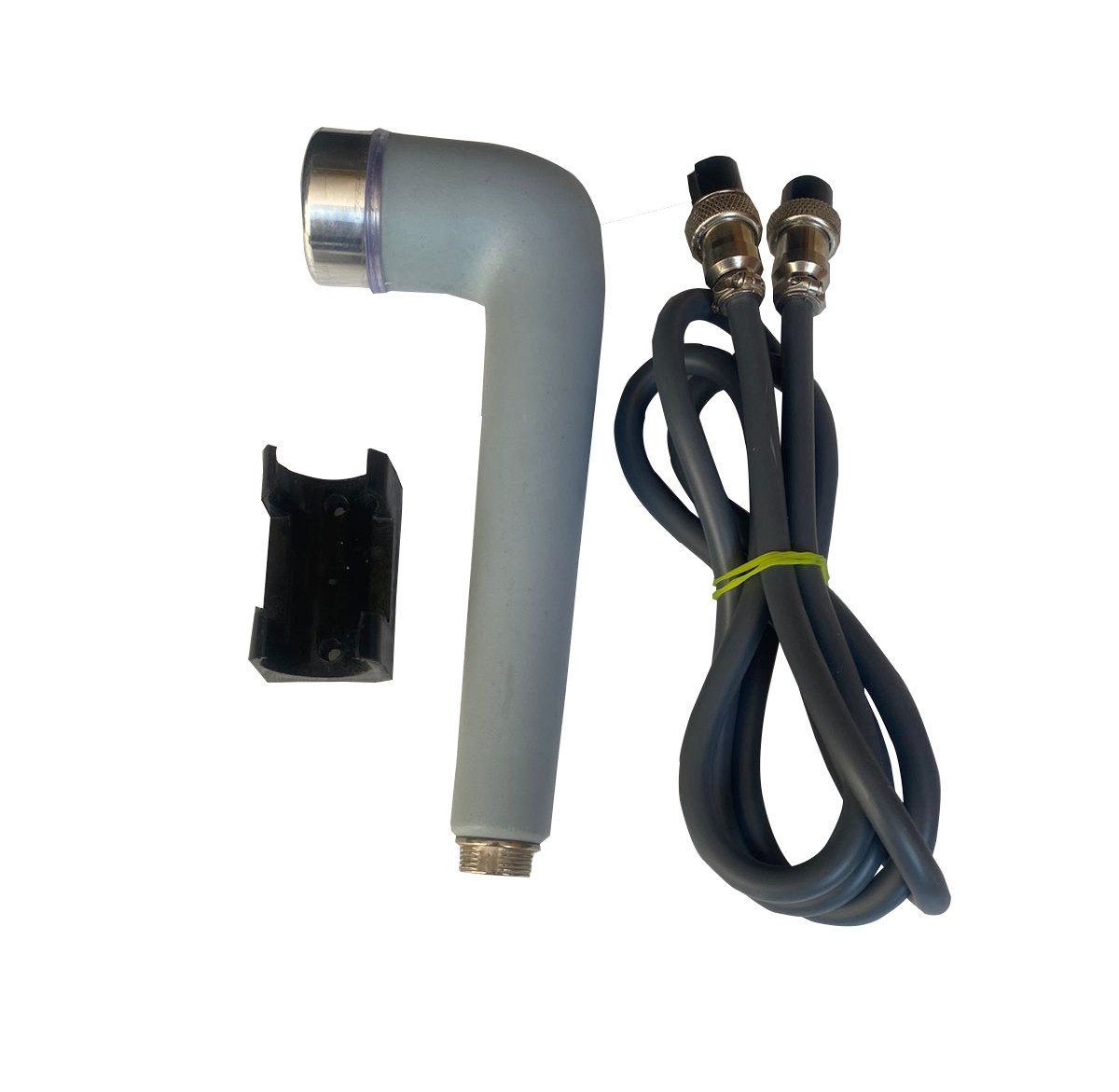

Ultrasound Head 1pcs
UST head cable 1pcs
Power cable 1pcs
-
