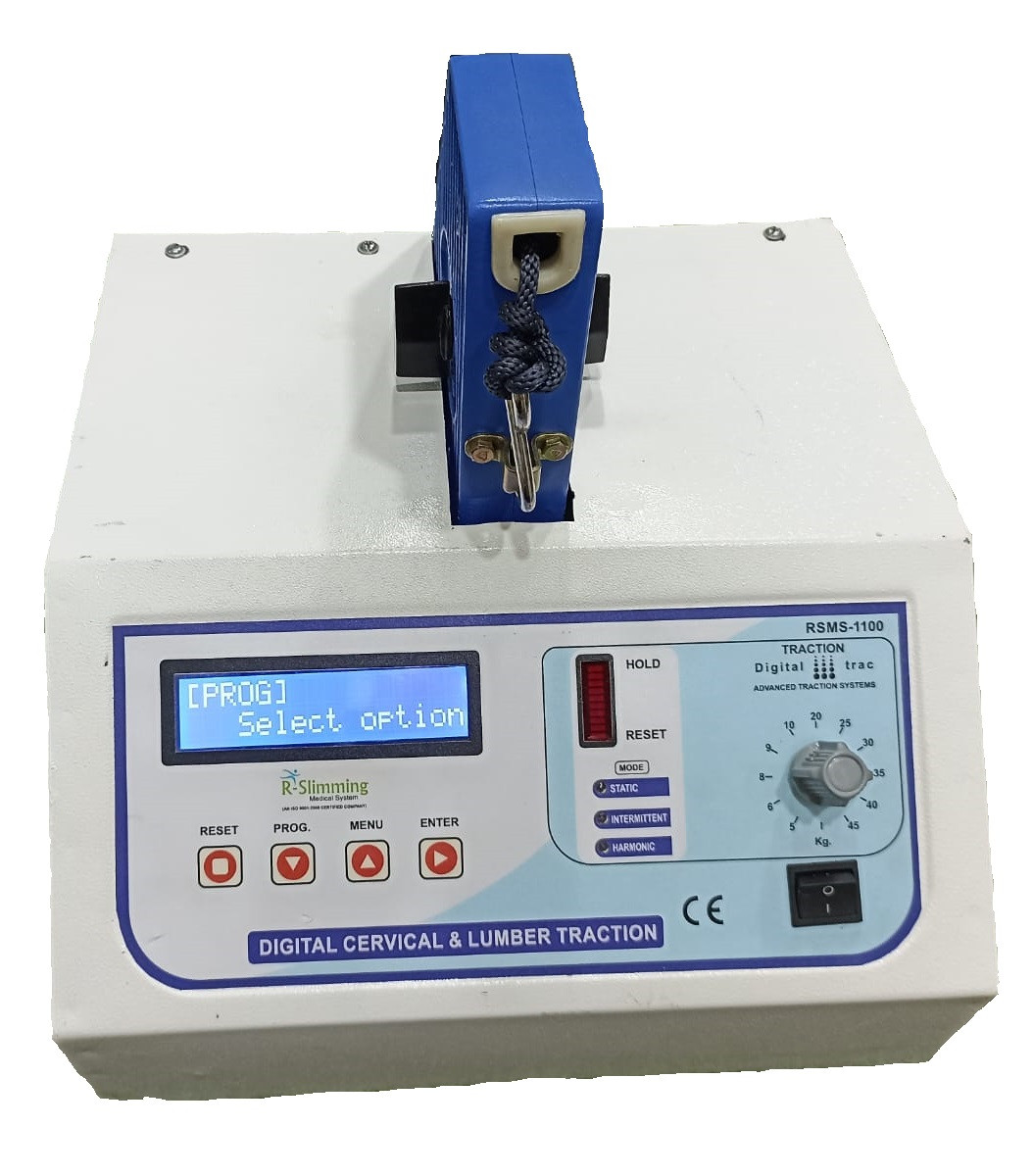

Traction RSMS-1100

RSMS-1100 is an improvised Silent and Powerful Intermittent and Continuous Traction machine. Improved reliability and performance has been achieved using new improvised motor and gear drive. Incremental mode of traction provides smooth increase in traction force for lumbar traction. Auto release engage (new feature) eliminates the need to to engage the patient and release the patient annually.

RSMS-1100 can pull load of 5-45 Kgs. Thanks to solid moulded aluminum gear box assembly and high power sturdy motor. The treatment time is electronically controlled and displayed digitally. At the end of treatment time the alarm comes up, traction stops automatically and releases the patient.

General Features:

• Electromechanical system with molded aluminum gear box & metal gear box and jerk free traction.

• Purpose is to treat cervical, lumber and thoracic compressed disorder.

• Should have the facility to slow stop and start mechanism when patients have moved

  during treatment.

• Large LCD display system, Where everything shown like hold time, release time etc.

• Armpit supports fit softly to the patients underarms and eliminate discomfort by the conventional armpit belts.

• • Modes: Continuous Intermittent Harmonic
  • Time: Choice as your desire from 1-99 minute
  • Digital: LCD monitor result as you seen everything
  • Body: Metal body become strong the machine
  • Force: Accurate force 5kg to 45kg
  • Safety: Patient easily stop machine only one switch




  Technical Specifications:

  Traction weight:	Lumber Force & Cervical Force 5-45 Kgs with Doubles Up to 90 Kgs
  Cervical:	5,7,9,11 Kgs.
  Lumber:	20, 25, 30, 40, 45 kg
  Timer:	0-99 Minutes
  Rest Time:	1-99 sec as your choice
  Hold Time:	1-99 Sec as you choice
  Traction mode:	Intermittent, Static., Hermonic
  Safety devices:	Emergency stop switch abnormal operation detecting circuit.
  Dimensions (Inch):	Main Unit WxLxH- 13 x 12.5 x 11 [In mm WxLxH- 330x317x279mm]
  Weight:	Main Unit 10 Kgs
  Power supply :	220 -240V,50/60 Hz
  Consumption:	85 Watts Maximum
  Fuses:	500mA
  Room Temperature:	10° to 40° C
  Moisture:	10% to 80%




  Standard Accessories:

  Chest Binding Belt 1pcs

  Waist Binding Belt 1pcs

  Cervical Belt 1pcs

  Cervical Road 1pcs

  Power Cable 1pcs
